RCB Insulated Gear Pump
  2018/6/8 11:48:39

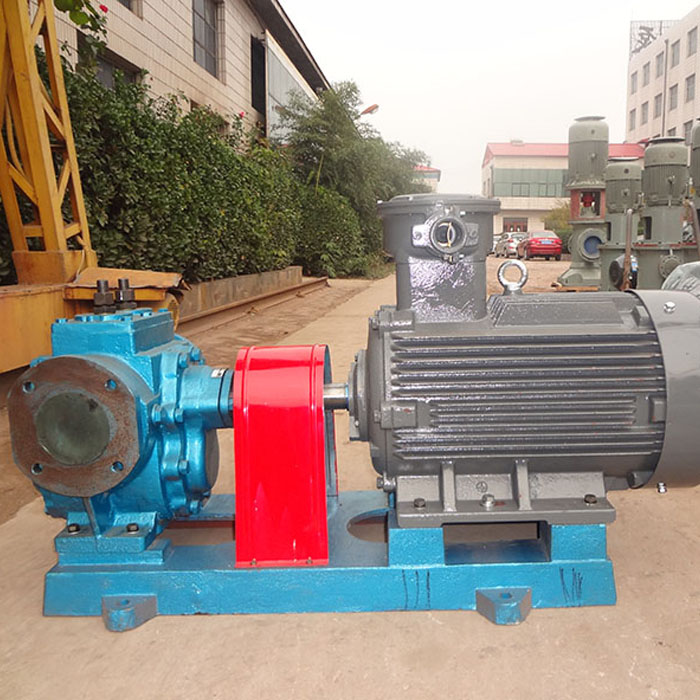

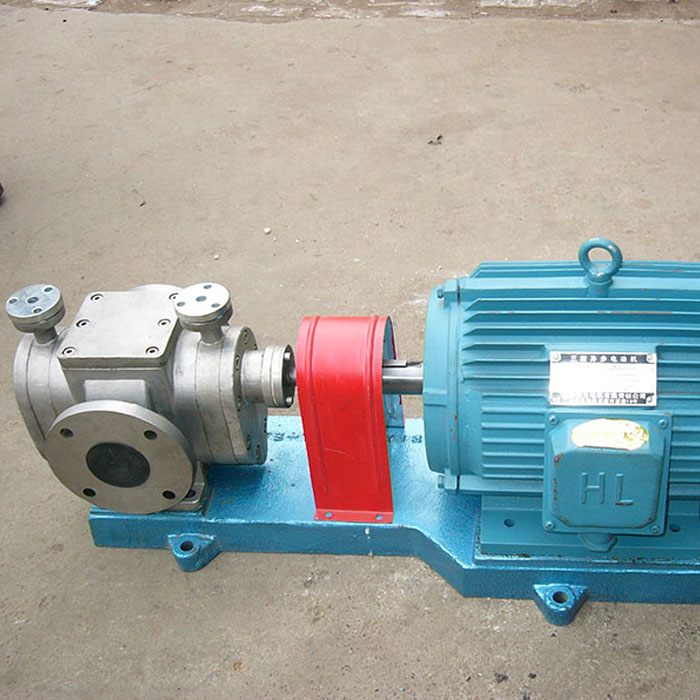

RCB Insulated Gear Pump

Pumped liquid

Bitumen, resin, heavy oil, rosin, wax, heavy oil


APPLICATION RANGE:

RCB Gear Pump, a new type of heat preserving pump, can be used to convey the liquid which has no corrosiveness but can be solidifiable at normal atmospheric temperature, such as heavy oil, asphalt, etc. The conveyed liquid mustn’t contain any solid particles in it, and the temperature of the liquid can be up to 180℃. The pump, because of  its heat preserving performance,can also be used in severe cold area for out door installtion and operation.


Performance parameter table:

规格型号       流量
       m3/h		       压力
       Mpa		口径
    mm		配电机
功率型号
RCB-1/0.610.36161.5Y 90L -4
RCB-1/0.810.8161.5Y 90L -4
RCB-2/0.3620.36251.5Y 90L -4
RCB-2/0.80.82.2Y 100L 1-4
RCB-3/0.3630.36251.5Y 100L -6
RCB-3/0.80.82.2Y 112M -6
RCB-5/0.3650.36402.2Y 100L -4
RCB-5/0.80.84Y 112M -4
RCB-6/0.3660.36402.2Y 132M -6
RCB-6/0.80.84Y 132M 1-6
RCB-8/0.3680.36504Y 112M -4
RCB-8/0.80.85.5Y132S-4
RCB-10/0.36100.36504Y 132M -6
RCB-10/0.80.85.5Y 132M2 -4
RCB-12/0.36120.36504Y 132M -6
RCB-12/0.80.85.5Y 132M2 -6
RCB-18/0.36180.36705.5Y 132M2 -6
RCB-18/0.80.87.5Y 160M -6
RCB-29/0.36290.36707.5Y 132M -4
RCB-29/0.80.811Y 160M -4
RCB-32/0.36320.3610011Y 160L -6
RCB-32/0.80.815Y 180L -6
RCB-38/0.28380.3610011Y 160L -6
RCB-38/0.360.815Y 180L -6
RCB-58/0.28580.3610018.5Y 180M -4
RCB-58/0.360.822Y 180L -4
RCB-72/0.28720.2815037Y250S-8
RCB-96/0.28960.2815045Y280S-6
RCB-110/0.281100.2820055Y315S-8
RCB-150/0.281500.2820075Y315S-6
RCB-170/0.282280.2825090Y 315L -6
RCB-230/0.283240.28250110Y 315L -6
